1:14 RC MAN TGX 18.540 (red prepainted)
- Article number: 300056332
- Age recommendation: from 14 years
€465.00
(within the EU)
Delivery time 1-3 working days within Germany
This item can only be delivered to the following countries:
Germany, Austria, Portugal, Netherlands, Hungary
Article number: 300056332 Product: 1/14 RC MAN TGX 18.540 (red prepainted)

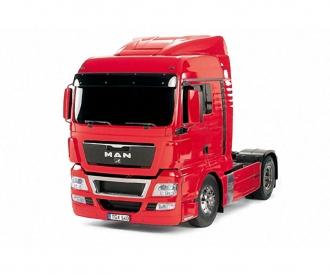

This special edition of the 1/14 R/C MAN TGX 18.540 4x2 XLX assembly kit comes with body components which are pre-painted in TS-39 Mica Red. A clear urethane topcoat is applied to ensure the finish resists scuffs and remains durable.
Required accessories:
• 4-channel system is recommended for potential future options and 3-speed operation.
• 7.2V battery and charger
• ESC (unless you are using MFC Unit #56511)
Product details
Features:
• Chassis Material: Aluminum and polycarbonate plastic
• Chassis Shape: Ladder Type Frame
• Suspension: Front and Rear Rigid Axle w/Metal Leaf Springs
• Caster Angle-F/R: 0deg/0deg
• Camber Angle-F/R: 0deg/0deg
• Toe Angle-F/R: 0deg/0deg
• Damper: F/R Aluminum Dummy Dampers
• Drive train: 2-axle
• Transmission: 3-gear transmission (gear shifting operated via transmitter)
• Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1
• Diff. gear system: F/R Bevel Gear Diff
• Engine: Electric 540
• Body Type: Styrene(plastic)
Technical data:
• Length: 520 mm
• Width: 187 mm
• Height: 293 mm
• Wheelbase: 237+103 mm
• Tread F/R: 156/138 mm
• Tire Width: F/R both 22 mm
• Tire Diameter: F/R both 83 mm
