Article number: 300058519
Product: 1:10 RC Toyota 4x4 Pick Up Bruiser 2012

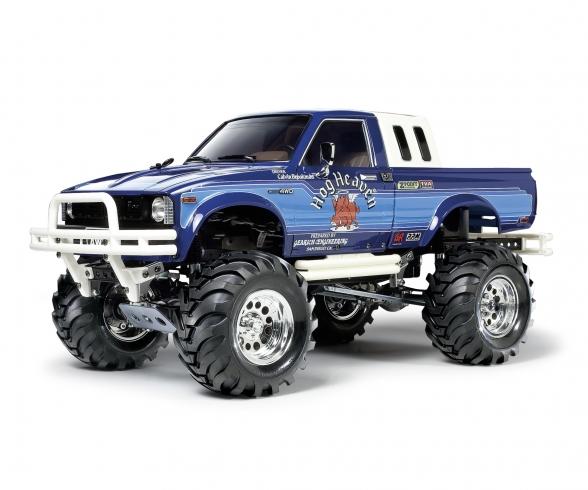

This electric R/C assembly kit reproduces the 4WD Toyota Hilux Pick-Up
(RN36), which enjoyed wide popularity in the US and Japan during the

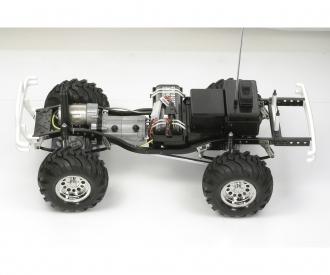

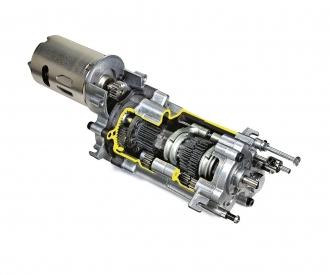

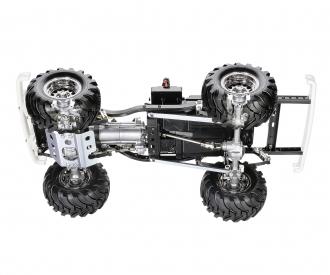

1980s and is still adored by many fans today. The model features a ladder frame like the actual vehicle, Type 540 motor, 3-speed
transmission, and an abundance of metal parts for a high level of

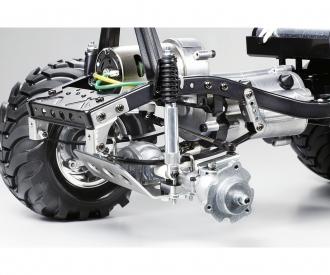

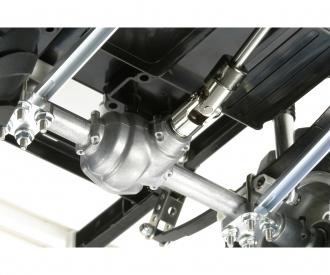

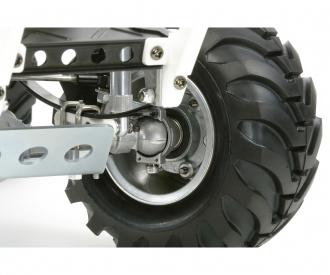

realism. Its live axle suspension features metal axle housings, leaf
springs, and oil dampers while a metal front under guard helps the model

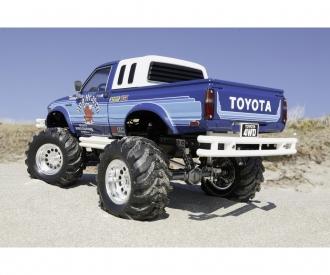

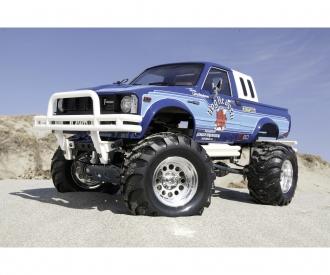

take on tough off-road conditions. A highly detailed injection-molded
body and large 123mm diameter tires also gives the model a stylish, high-lift appearance.
About the Toyota Hilux Pick-Up
The 3rd generation Toyota Hilux Pick-up (30/40 Series) debuted in 1978
and the RN36 model was developed specifically for export markets. It
featured a sporty, lightweight body and was powered by a 98hp 1,968cc
4-cylinder gasoline engine. Furthermore, its live axle suspension
featured front leaf spring shackles located towards the rear to provide
sufficient approach/departure angles for superb off-road performance.
Front/rear flared fenders and large tires gave the truck a tall,
aggressive stance. The RN36 model was mainly exported to North America
but was also later sold in Japan, and there are still many fans of this pick-up to this day.
Necessary accessories:
- 4-channel R/C unit with ESC
- Battery Pack & Charger
- Batteries for transmitter
Scope of delivery:
Kit model with detailed illustrated assembly instructions
Warning notices:
Read carefully and fully understand the instructions before commencing
assembly. A supervising adult should also read the instructions if a child assembles the model.
When assembling this kit, tools including knives are used. Extra care should be taken to avoid personal injury.
Read and follow the instructions supplied with paints and/or cement, if used (not included in kit).
Keep out of reach of small children. Children must not be allowed to put
any parts in their mouths, or pull vinyl bags over their heads.
Product details
Features:
- Length: 525mm, Width: 278mm, Height: 275mm,
Weight: 3.2kg- Tread: 200mm (Front), 218mm (Rear)
- Wheelbase: 287mm
-Tire Width/Diameter (F/R): 60/123mm
- Type 540 Motor

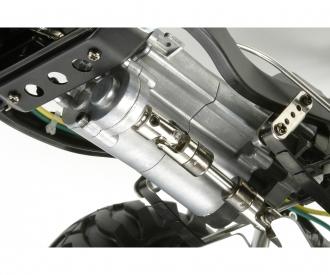

- Longitudinally-Mounted Motor Shaft-Driven 4WD
- Front & Rear 6-Pinion Differential Gears
- Front & Rear Oil Dampers
- Gear Ratio; 1st Gear=1：54.63 (4WD), 2nd Gear=1：40.49 (2WD), 3rd Gear=1：27.92 (2WD)
- Requires an Electronic Speed Controller (sold separately)
Kotwa Ernst
28.08.2020
Toyota Hilux
Ich besitze noch das Original/Erstausgabe Es war zu dieser Zeit ein absolutes Novum,ein Scalecrawler der Sonderklasse Ich besitze IHN seit fast 30Jahren , und fährt immer noch wie Neu
Klar ,er hat im Laufe der Zeit einige Schrammen abbekommen ,aber Qualität überzeugt. Der Annschaffüngspreis mag zwar momentan etwas"happig "erscheinen,aber ,wenn man dieses Modell etwas pflegt ,hat man es ewig ????????????????Tuningtipps:Schmieröffnungen in die Portalachsen mit Madenschrauben verschließen.

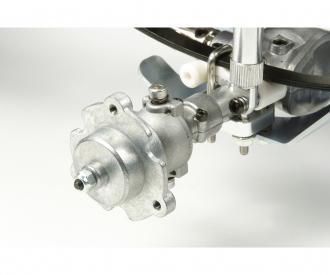

Vorderachse:Kugellager einbauen ,Querstifte erhitze abziehen,Kugellager einbauen Stifte wieder einpressen.
Freilaufnaben mit Silikon vorsichtig versiegeln.
Hinterachse:Wenn die Kegelzahnräder abgenutzt sind ,durch Edelstahl/Fachhandel ersetzen,ist bei diesem Fahrzeug der einzige Schwachpunkt
Einfach ein top,top top Modell für Liebhaber ????????????????
