New
The DT-04 NXGEN is the consistent further development of the TAMIYA
Fighter Buggy models and THE entry-level buggy for young racers!
Since 1996, TAMIYA has been setting the standard for entry-level models
and the RC car scene with the Fighter Buggies. The DT-04 is based on the
tried and tested basis of the DT-03 but has been revised in many places.
NXGEN stands for "Next Generation", i.e. the latest generation of Fighter 2WD Buggies.
There are many new features in this model, both technically and
visually: The look is based on the popular single-seater American racing buggies with 2WD rear-wheel drive.
TAMIYA implements this with plastic parts that are already colored white, which makes painting unnecessary.
The
model can be built in 2 color variants from the kit and the driver figure with helmet makes the Fighter a real eye-catcher!
Technically, the NXGEN offers a new 3-part steering, oil pressure shock
absorbers, new axle supports, 6-edge wheel mounts at the front and rear,
new steering levers and much more! The model can be built in 2 different
wheelbases (265mm or 280mm). This is done simply by turning the front
lower wishbones and converting the steering. A short wheelbase makes the
model more agile on the racetrack and the long wheelbase enables a smoother ride.
Required accessories (not included):
RC System with Receiver, Servo; 7.2V NiMH Battery Pack, Charger, Paints for Driver Figure (Tamiya X, XF, LP)
2WD assembly kit, DT-04 Chassis,
ESC included, Type 540 Torque-
Tuned Motor, ABS-Body, user guide
Warning! Not suitable for children under 14 years.
Product details

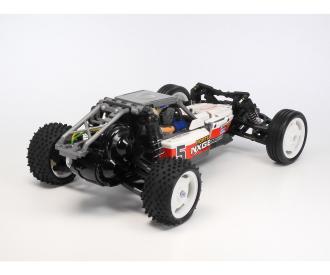

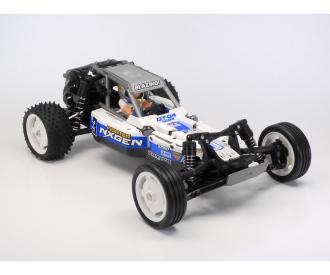

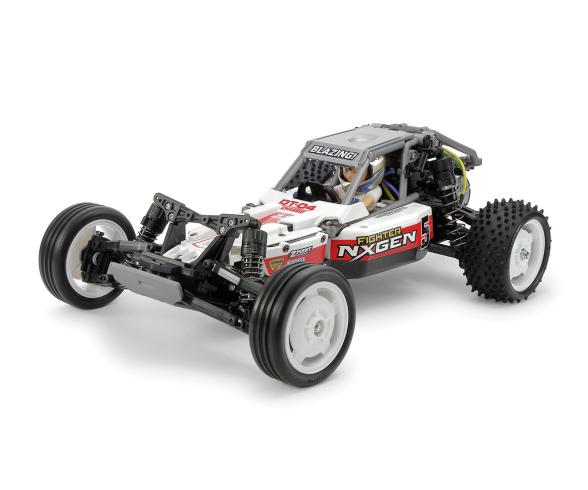

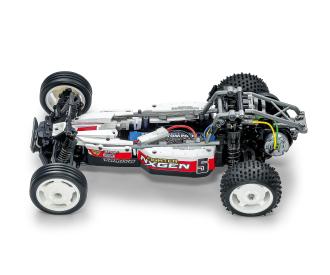

- This is a 1/10 scale R/C model assembly kit. Length: 395mm (with 265mm
wheelbase) / 404mm (with 280mm wheelbase), height: 120mm, width: 248mm.
- Two wheelbases can be selected: 265mm for emphasis on handling or
280mm for emphasis on stability. Reassemble the front section (arms, etc.) to switch between two different wheelbases

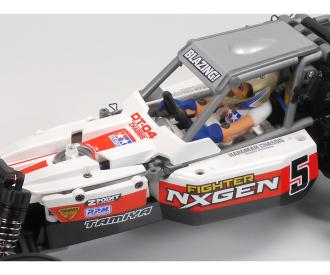

- The distinctive body features multiple body panels connected to pipe frames, a design inspired by full size racing buggies.
- Its 2WD rear-wheel drive chassis has a lightweight, durable bathtub frame which is newly designed.
- The chassis has an inline battery pack position, and a rear-mounted motor to give the rear wheels plenty of traction.
- The sealed gearbox has a built-in gear differential for smooth cornering and helps keep out dust and dirt

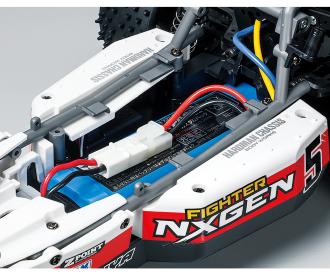

- Side pontoons have the ESC in the left and the receiver in the right.
- The 4-wheel independent double wishbone suspension with long arms employs CVA oil dampers.
- Front suspension arms have a skid angle of 22.5 degrees for superlative off-road handling and performance.
- The 3-piece steering tie-rod gives true steering. (It is the first time to employ 3-piece steering tie-rod in this series.)
- Access the battery pack from the car top. Turn the hood lever and remove the side pins then lift up the roof.
- After that, slide the driver figure forward to access the battery.
- Ribbed tires are on the front, and grippy square spike tires on the rear.
- Hex hubs on the front allow attachment of different wheels.
- Rear damper attachment positions and rear upper arms can be changed.

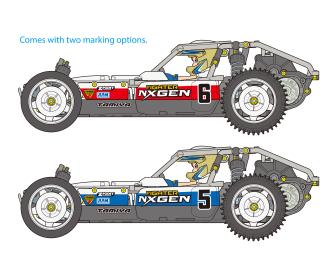

- Comes with two marking options and one driver figure. Use Tamiya Color paints (sold separately) to paint the driver figure.
- Many separately sold DT-02/DT-03 parts are compatible, with a wealth of options for fine-tuning setup.
